Optima Turn

For High to Very High Risk​

Reducing patient handling complexity and patient discomfort — Improving repositioning feasibility and pressure ulcer prevention.

Over 670,000 cases of hospital-acquired pressure injuries occur every year in the United States, with an institutional cost exceeding USD 11.5 million.1,3  Pressure ulcers significantly increase inpatient mortality and prolong inpatients' length of hospital stay by 7 to 11.2 days.1-3 Treatment costs over USD 130,000 per inpatient (stage IV) and quickly accumulates due to high readmission rate within 30 days after discharge.3,4

Turning patients at a 30° lateral position (lowest max pressure in lateral position) every 4 hours on an alternating pressure mattress significantly reduces pressure ulcer incidences by 85% and labor-intensity for caregivers and improves patient comfort and overall effort- and cost-efficiency.5,6

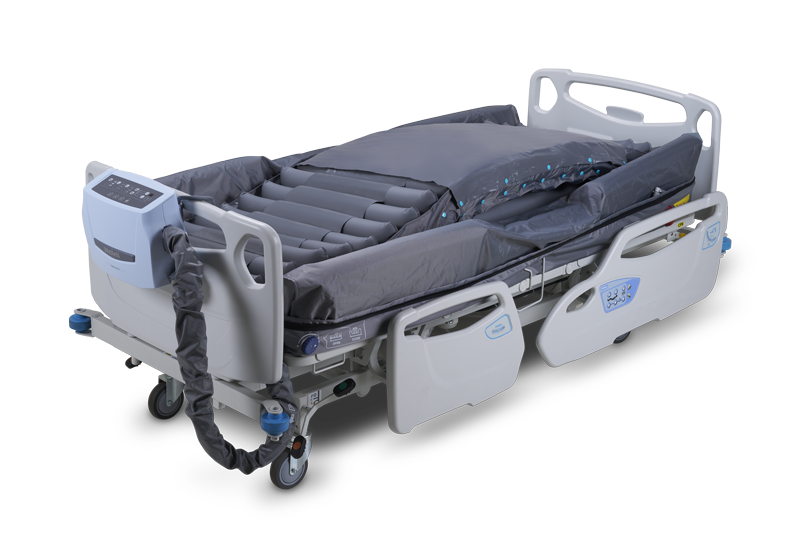

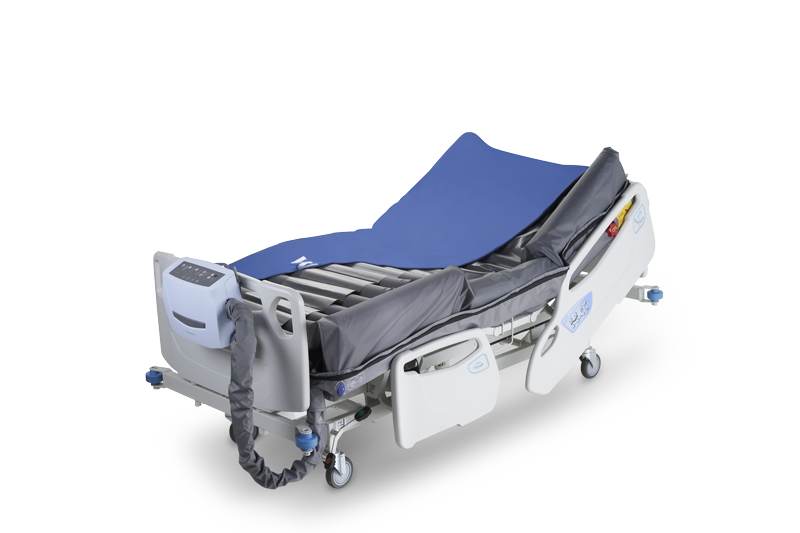

Optima Turn's automatic and timer-controlled turning up to 30° supported by alternating pressure, multiple pressure relief therapy options and manually deflatable air cells for heel relief care, all easily accessible through the intuitive pump interface, streamlining patient handling and caregiver workload.

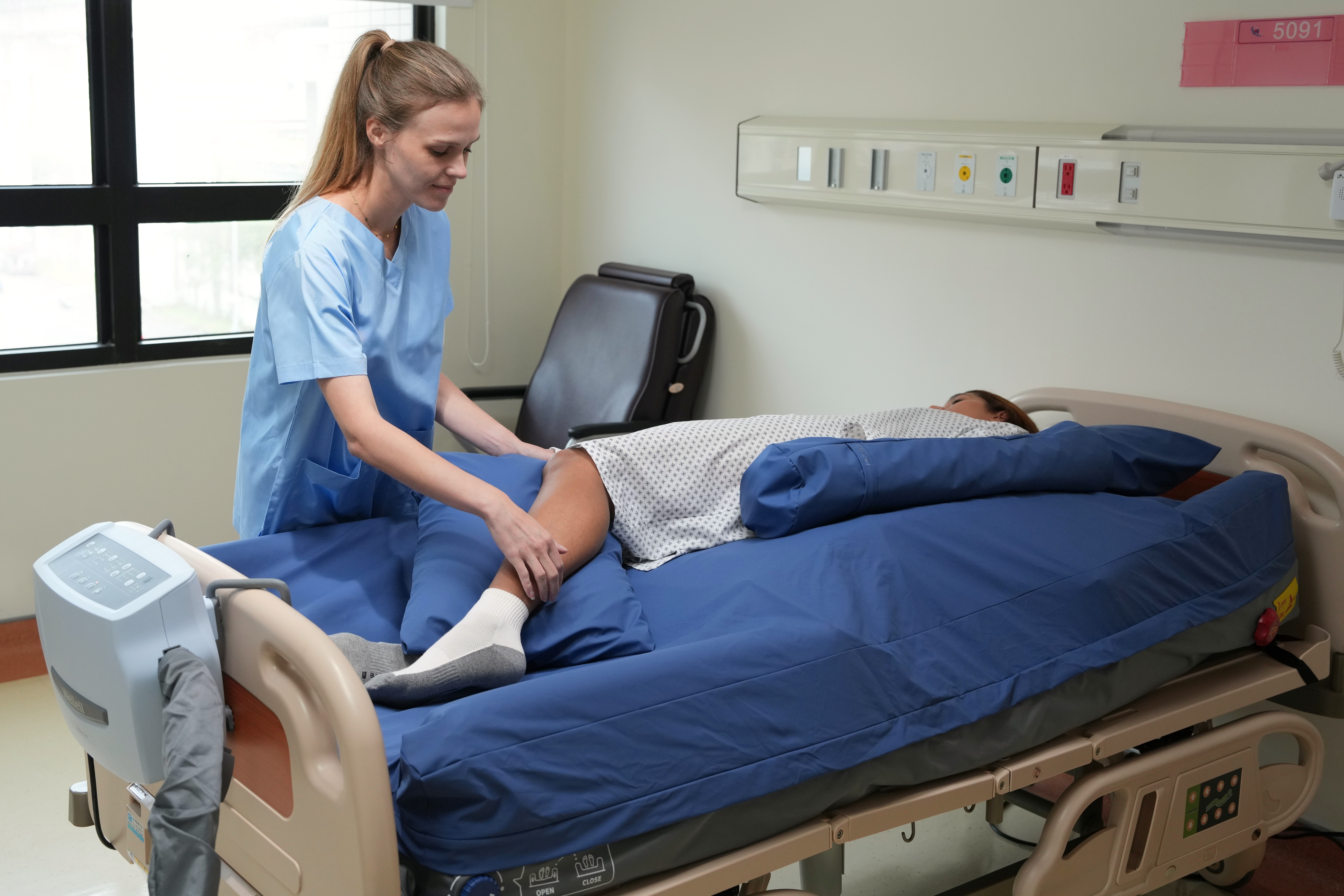

Automate 30° Lateral Turning

Click-to-activate turning angle, direction, and therapy timer minimize labor requirement for patient repositioning, protect the caregiver from potential injuries, and allow more time and energy to adjust the patient for maximum comfort.

Continuous Surface Pressure Relief

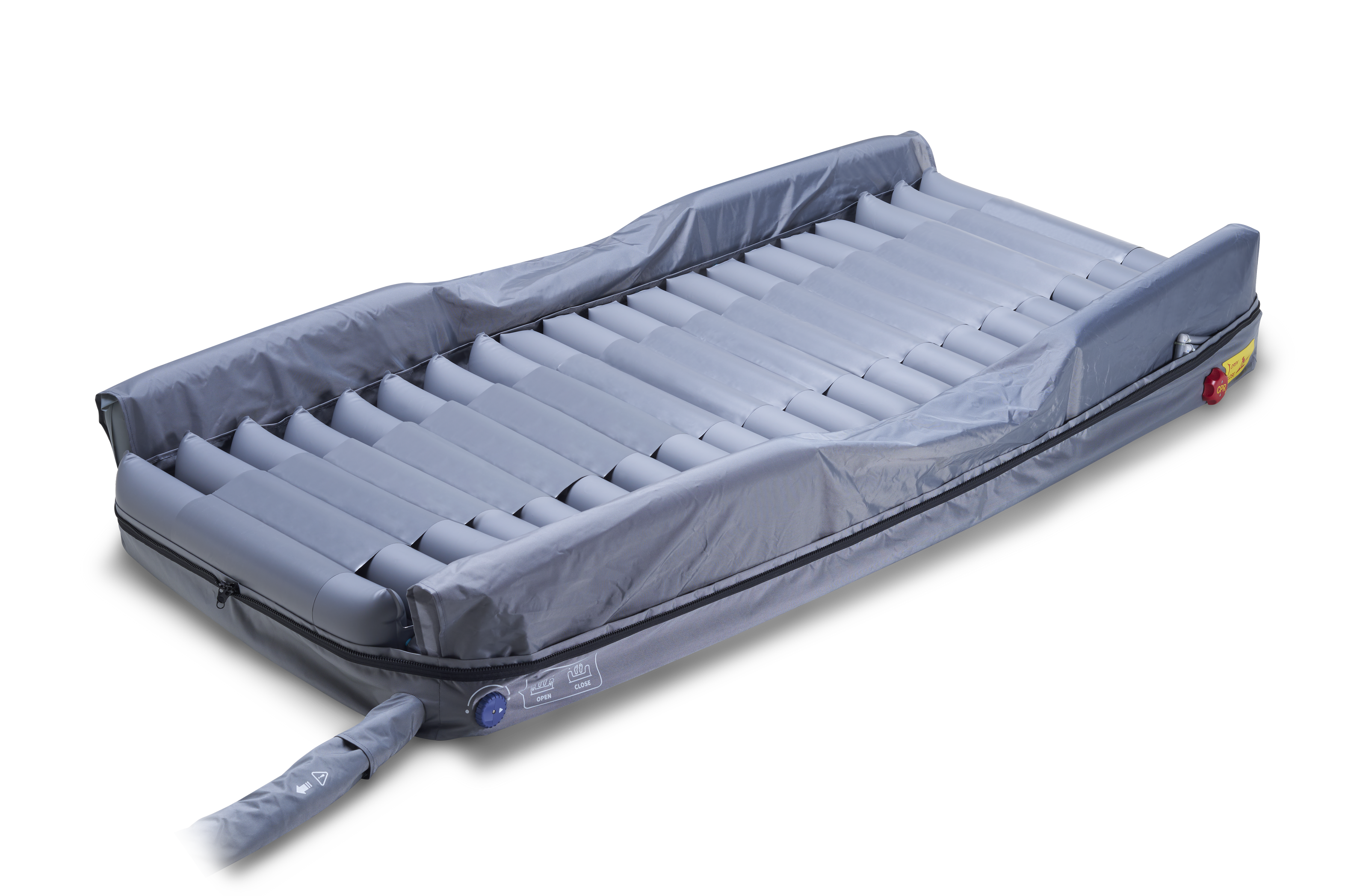

Seamless transition between supine and lateral repositioning with alternating pressure paired with firm side bolsters provide maximum patient comfort and security. Seat inflation modes ensure patients stay comfortable and supported when active.

Personalize Heel Relief Care

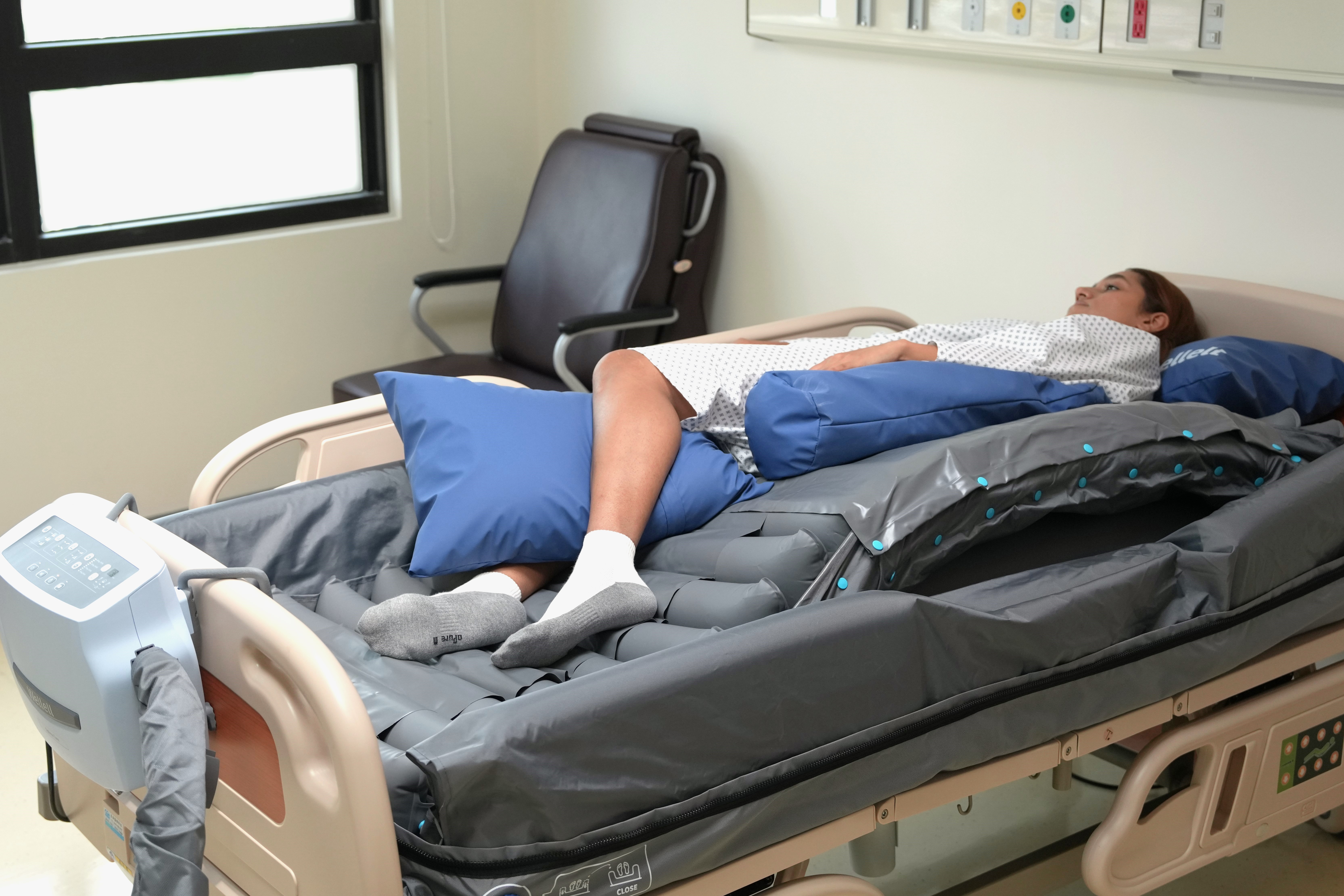

Accommodate pressure relief care for different body types by deflating individual air cells at the heels for maintaining zero-pressure heel relief, minimizing the patient's risk of developing pressure injuries and prolonging the length of treatment.

Instant Access to Patient Comfort

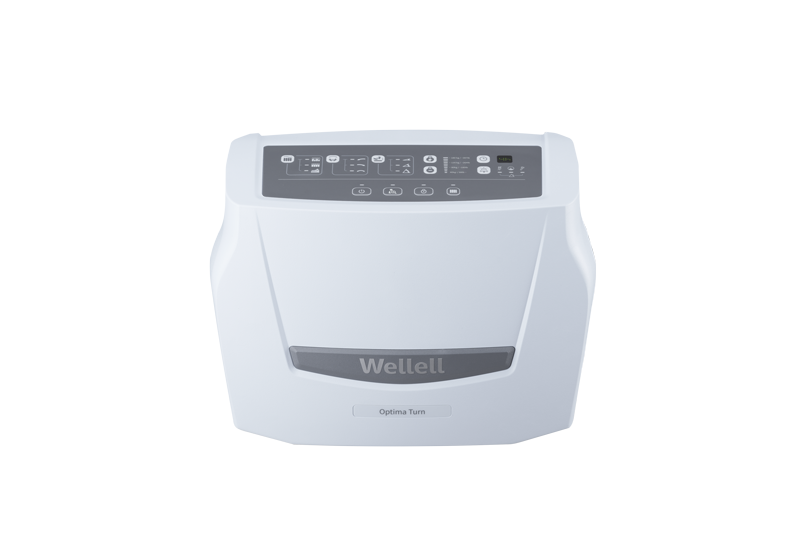

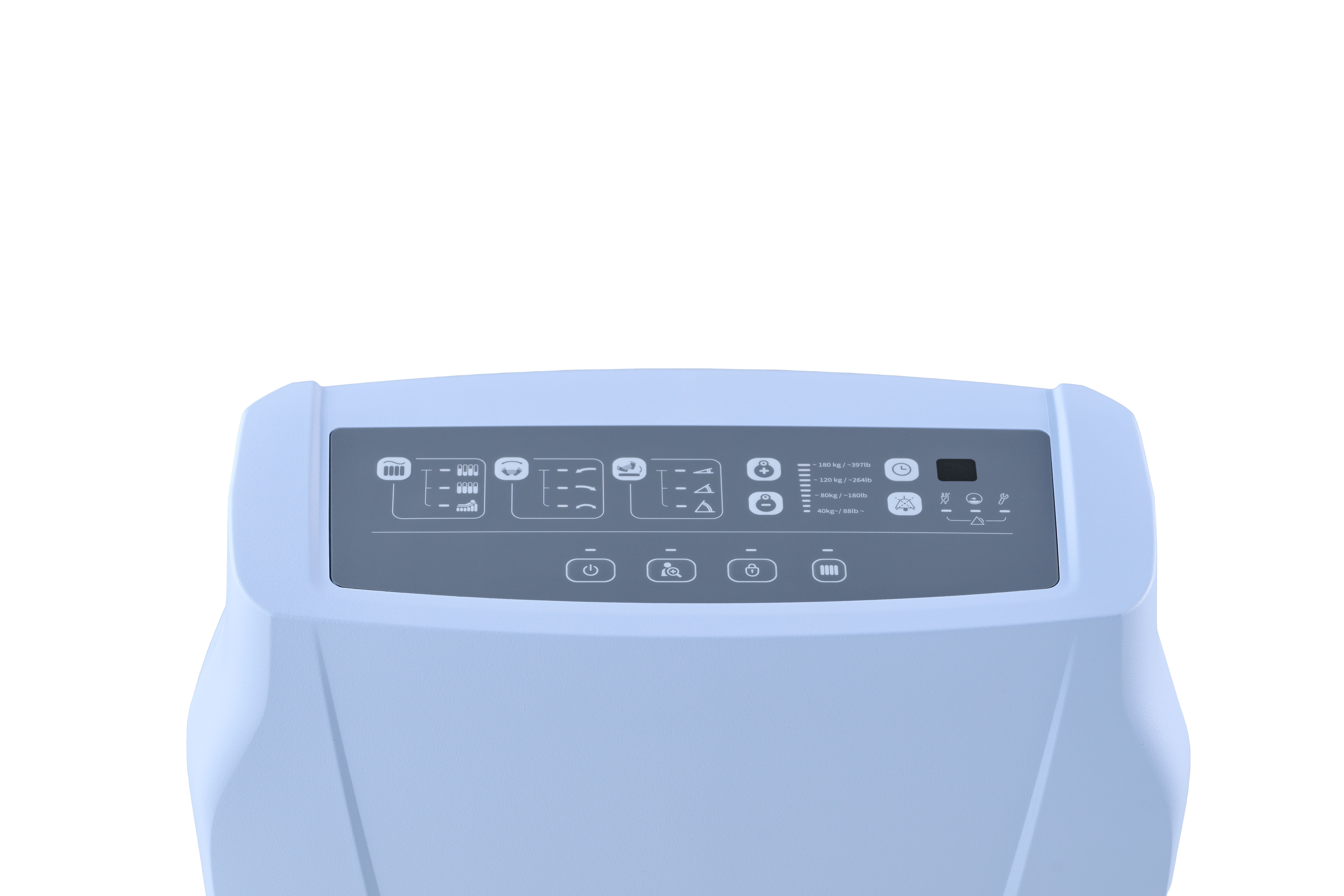

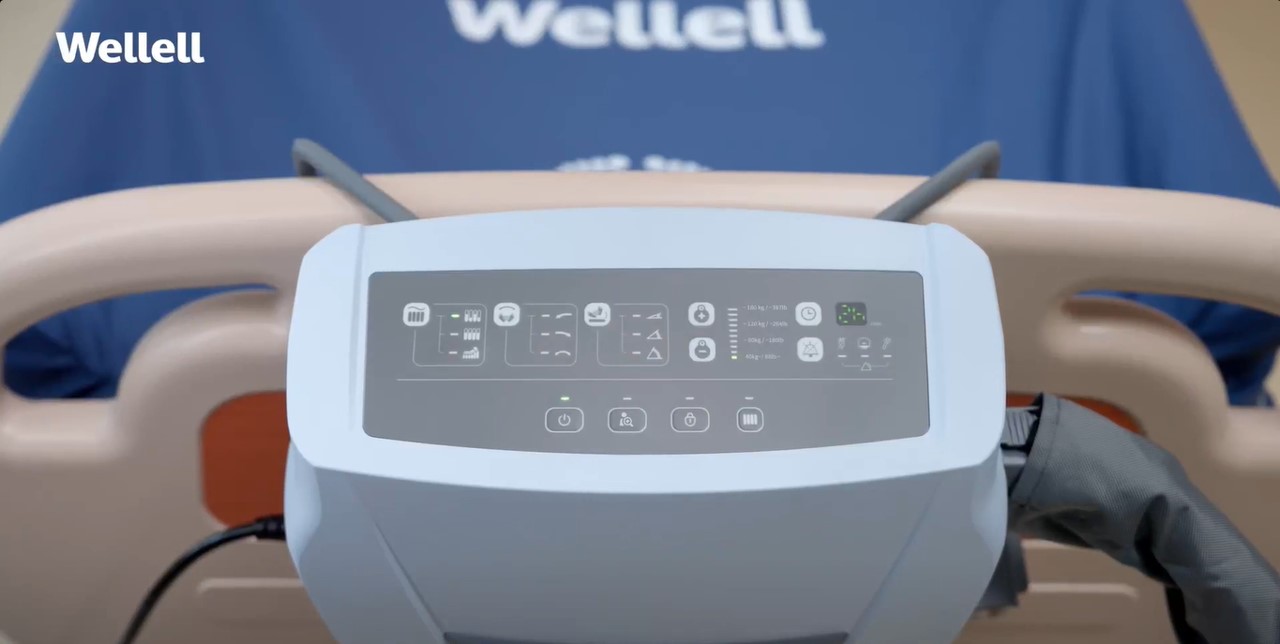

Pump's intuitive interface improves patient care by easily customizing therapy with pressure settings, turning angles, rotating directions, therapy timer, alarms, troubleshooting, and rotational pause to halt repositioning operation.

Optima Turn

Automating caregivers’ workflow and improving pressure injuries prevention and long-term patient care.

Pressure-relieving surfaces aids repositioning outcome.

Pressure-relieving support surfaces that reduce the number of caregivers required for frequent lateral repositioning improve workplace safety, cost-efficiency and adherence to pressure ulcer prevention practices, and patient care quality and outcomes for all severity levels.7

What are the advantages of using Optima Turn?

  1. Save caregiver's time.
  2. Relieve pressure on the hips, sacrum, greater trochanters and heels.
  3. Provide comfort and stability.
  4. Reduce caregivers' exposure to potential harm from intensive patient handlings, such as lifting and resituating patients.
  5. Help reposition patients and increase their mobility.
  6. Customize pressure settings based on the patient's needs.
  7. Continue pressure relief care during transports and events where immediate power is unavailable.
  8. Promote active recovery with inflated seating which provides support and stability and prevents patients from bottoming out.

When the patients are in turn, won't they risk falling off the bed?

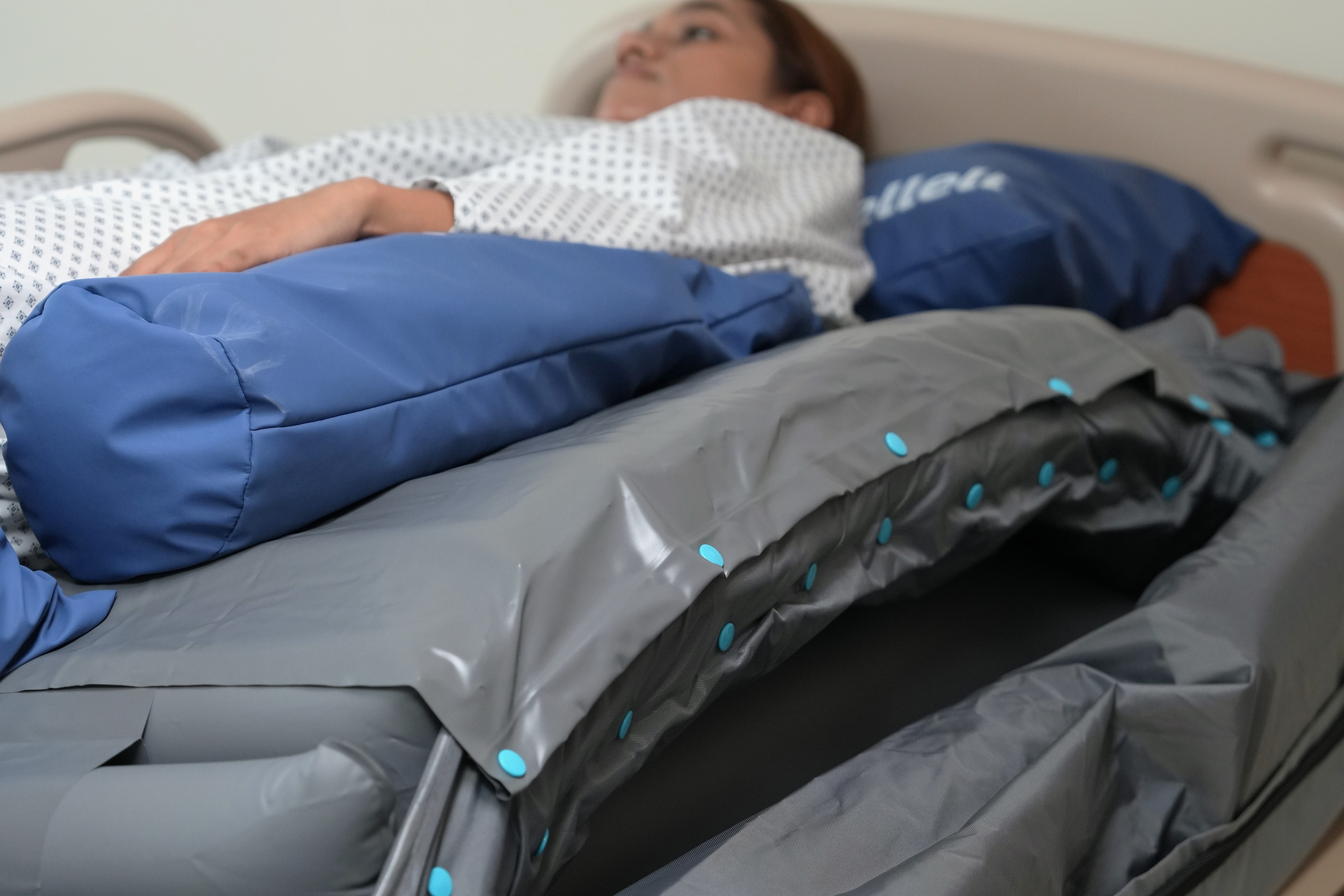

The side bolsters protect patients from pressing directly against the side railing and sliding off the mattress. The firmness of these air cells also provides additional comfort for the patient's side when in turn.

How does Optima Turn increase comfort when patients are turned on their sides?

Optima Turn's mattress provides continuous alternating pressure relief, and the side bolsters protect patients from pressing against the railings while providing comfort. In addition, individual deflatable air cells allow caregivers to customize heel relief care. For more posture support, Turn minimizes the caregivers' labour in lifting the patient to place foam or pillows as needed quickly.

Optima Turn suits which types of patients?

  • Unconscious
  • Bedbound and immobilized
  • Medium to high risk of pressure injures, especially on the scapulae (back shoulder area) and greater trochanters (hip side area)

Optima Turn suits what type of settings?

ICU, GICU, NICU, Neurosurgery and Neurology, and long-term care facilities.

After powering on Optima Turn, what pressure setting will it be set to?

After powering on Optima Turn, the air cells will automatically inflate to their maximum firmness. Once the inflation process is complete, the caregiver can choose between continuous low pressure or alternating pressure modes based on the patient's needs. The pump will automatically switch to the alternating pressure mode if a mode is not selected within the first 10 minutes after the initial inflation process.

How long does it take to change between the left and right turns?

It takes 3-5 minutes to change from left to right turn and vice versa. The patient's BMI (body mass index) and body contour will influence turning duration, with heavier patients taking longer to change between turns. The dwell time starts counting when the turn reaches the selected degrees immediately.

Can the alternating pressure mode be deactivated when the patient is in turn?

No. In turn, the alternating pressure mode is part of the default mode and cannot be deactivated.

What materials are the air cells made from?

All air cells are made from Thermoplastic Polyurethanes (TPU). It is highly resistant to breaking down when in contact with water (hydrolysis), soft to touch, and minimizes friction and noise during patient movements.

What does it mean when air cells have cell-in-cell? What are their benefits?

Cell-in-cell design refers to encapsulating a firm air cell within a larger outer cell, doubling the effect of firmness and stability for patients. Wellell’s Optima Series, including Prone, uses air cells with the cell-in-cell design in the sacrum area to improve patient support and comfort during sitting positions and when patients leave and enter the bed.

Supporting Documents
Are you interested in this product?


  1. Bauer K, Rock K, Nazzal M, Jones O, Qu W. Pressure Ulcers in the United States' Inpatient Population From 2008 to 2012: Results of a Retrospective Nationwide Study. Ostomy Wound Manage. 2016 Nov;62(11):30-38. PMID: 27861135.
  2. Sullivan N, Schoelles KM. Preventing in-facility pressure ulcers as a patient safety strategy: a systematic review. Ann Intern Med. 2013 Mar 5;158(5 Pt 2):410-6. doi: 10.7326/0003-4819-158-5-201303051-00008. PMID: 23460098.
  3. Brem H, Maggi J, Nierman D, Rolnitzky L, Bell D, Rennert R, Golinko M, Yan A, Lyder C, Vladeck B. High cost of stage IV pressure ulcers. Am J Surg. 2010 Oct;200(4):473-7. doi: 10.1016/j.amjsurg.2009.12.021. PMID: 20887840; PMCID: PMC2950802.
  4. Lyder CH, Wang Y, Metersky M, Curry M, Kliman R, Verzier NR, Hunt DR. Hospital-acquired pressure ulcers: results from the national Medicare Patient Safety Monitoring System study. J Am Geriatr Soc. 2012 Sep;60(9):1603-8. doi: 10.1111/j.1532-5415.2012.04106.x. PMID: 22985136.
  5. Defloor T. The effect of position and mattress on interface pressure. Appl Nurs Res. 2000 Feb;13(1):2-11. doi: 10.1016/s0897-1897(00)80013-0. PMID: 10701278.
  6. Defloor T, De Bacquer D, Grypdonck MH. The effect of various combinations of turning and pressure reducing devices on the incidence of pressure ulcers. Int J Nurs Stud. 2005 Jan;42(1):37-46. doi: 10.1016/j.ijnurstu.2004.05.013. PMID: 15582638.
  7. Jocelyn Chew HS, Thiara E, Lopez V, Shorey S. Turning frequency in adult bedridden patients to prevent hospital-acquired pressure ulcer: A scoping review. Int Wound J. 2018 Apr;15(2):225-236. doi: 10.1111/iwj.12855. Epub 2017 Dec 15. PMID: 29243356; PMCID: PMC7949701.
